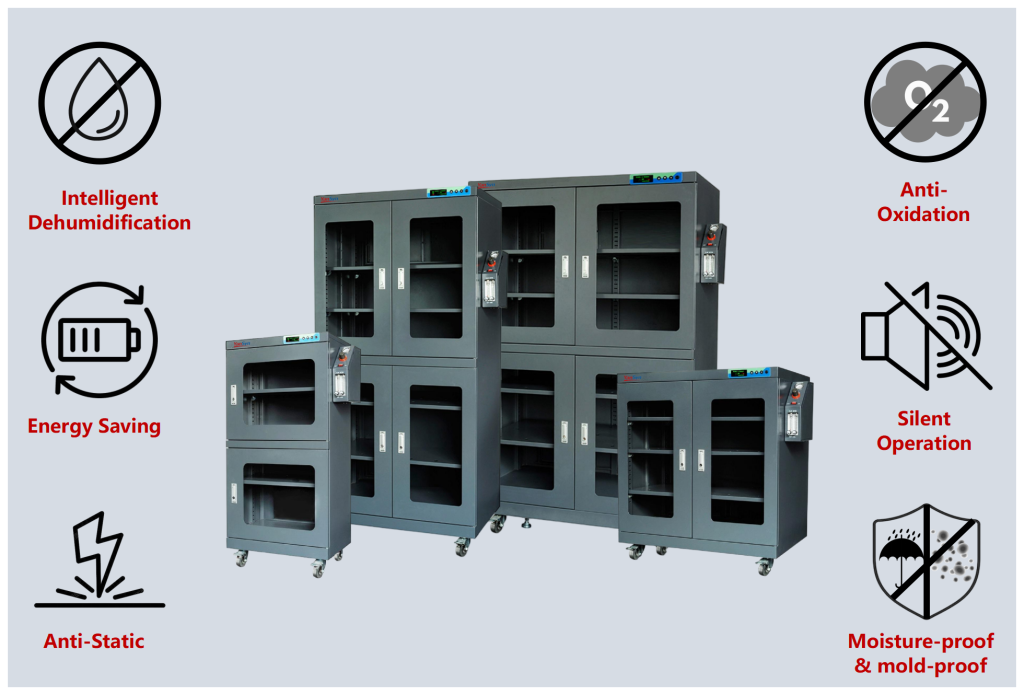

YSN Series Anti-oxidation Nitrogen Cabinets
Intelligent Dehumidification
New-generation sensor control, fully automatic rapid dehumidification
Energy Saving
Low-power dehumidifier core, low-carbon and environmentally friendly
Anti-Static
ESD-safe coating 106–109 Ω, meets industry standards
Anti-Oxidation
Continuous and stable nitrogen concentration for efficient protection
Silent Operation
Low-noise design with no frost or water dripping during operation
Moisture-proof & mold-proof
Magnetic sealing strip, no moisture regain even when power is off

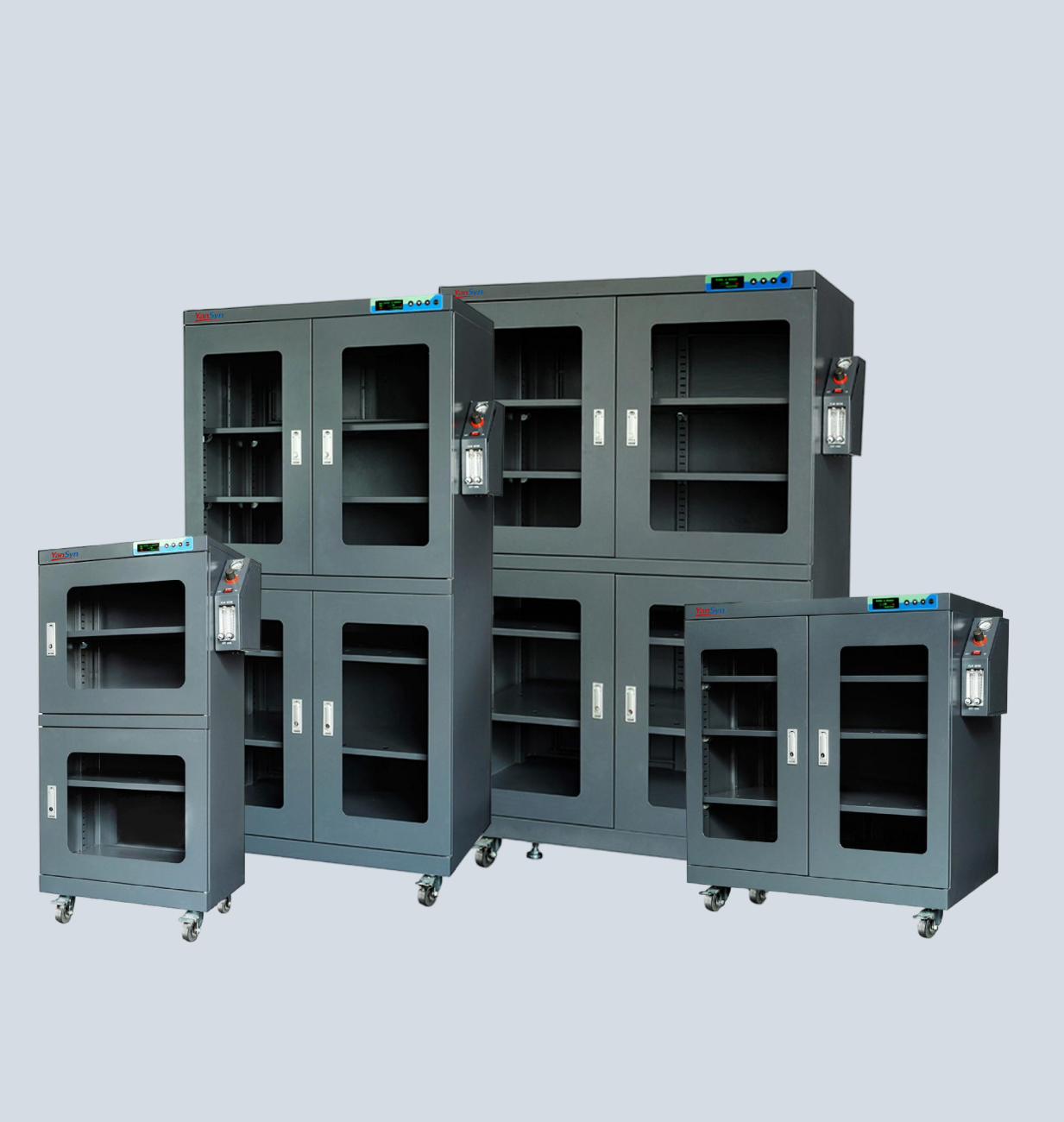

Product Overview
Intelligent Dual Flowmeter Control, Saving Over 50% Nitrogen Consumption
The YSN series anti-oxidation nitrogen cabinets adopt the new generation of microcomputer sensor control system to achieve fully automatic nitrogen filling. Users can flexibly adjust the gas flow and pressure according to their needs to ensure a continuous and stable nitrogen concentration, achieving efficient moisture-proof and anti-oxidation protection.
Intelligent dual flowmeter system, significantly saving gas: The unique "dual flowmeter" intelligent control system can automatically adjust the nitrogen supply according to the actual working conditions. After the humidity reaches the set value, the main unit automatically enters a semi-sleep state. Compared with conventional equipment, it can save more than 50% of nitrogen consumption, achieving efficient protection while significantly reducing operating costs.
Integrated module, stable performance and easy maintenance: The core control part adopts an integrated module design, integrating the control system into an independent control box. This not only enhances the overall stability of the machine but also facilitates later maintenance and upgrades. The core components of the control box are all imported brands, ensuring control accuracy and long-term operational reliability.
All-weather protection, suitable for frequent operations: The control system supports 24-hour uninterrupted operation throughout the year. When equipped with a composite type humidity control and nitrogen-saving main unit, it also has the function of continuous dehumidification protection in case of power failure. It is particularly suitable for scenarios with high requirements for moisture-sensitive component storage, rapid dehumidification, or frequent door opening and closing.

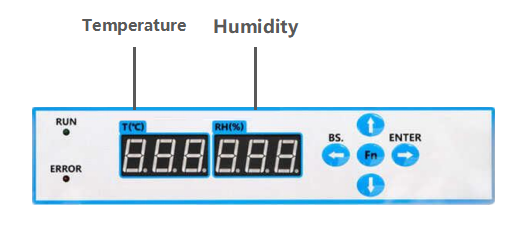

Humanized design, safe and easy to use: The whole machine design adheres to the humanized concept, with simple installation, intuitive operation, and support for unattended automatic operation. The cabinet is equipped with a high-brightness display screen, which can display temperature and humidity data in real time, making it convenient to view and set at any time. The entire machine adopts a safe voltage design to ensure operational safety.
Professional anti-static model, in line with industry standards: The anti-static model cabinet coating has a conductivity coefficient of 10⁶-10⁹Ω, meeting the national and industry ESD standards such as SJ/T10694-2006 "General Specifications for Anti-static in the Production and Application System of Electronic Products".
Exquisite craftsmanship, green and low-carbon: This series of products feature exquisite craftsmanship, high-quality materials, durable structure, and convenient maintenance, effectively reducing the total life cycle usage cost. The whole machine has a low-power operation characteristic, in line with the green and low-carbon environmental protection trend.
Storage solution for the era of Industry 4.0: YanSyn's latest dual humidity control technology redefines the storage standards of dehumidification cabinets, helping users keep pace with the era of Industry 4.0.
Applicable Industries
1. Semiconductors and Microelectronics: Long-term anti-oxidation storage of chips, integrated circuits, photomasks and wafers
2. Precision Electronics and Components: LED chips, high-end PCB circuit boards, precision sensors and connectors — storage and aging
3. New Energy and Lithium Batteries: Cathode and anode materials, electrolytes, cells and battery sheets — safe, low-humidity storage
4. Optics and Optoelectronics: Precision optical lenses, laser devices, optical fibers and coated optics — dust-free storage
5. Metal Processing and Precision Manufacturing: High-purity metal powders, precision metal parts, tools and bearings — rust-proof storage
6. Cultural Relics, Archives and Precision Instruments: Museum artifacts, historical archives and precision instruments such as balances and microscopes — preservation
Product Feature
Quick dehumidification,
Safe and reliable
Easy operation, Human-oriented

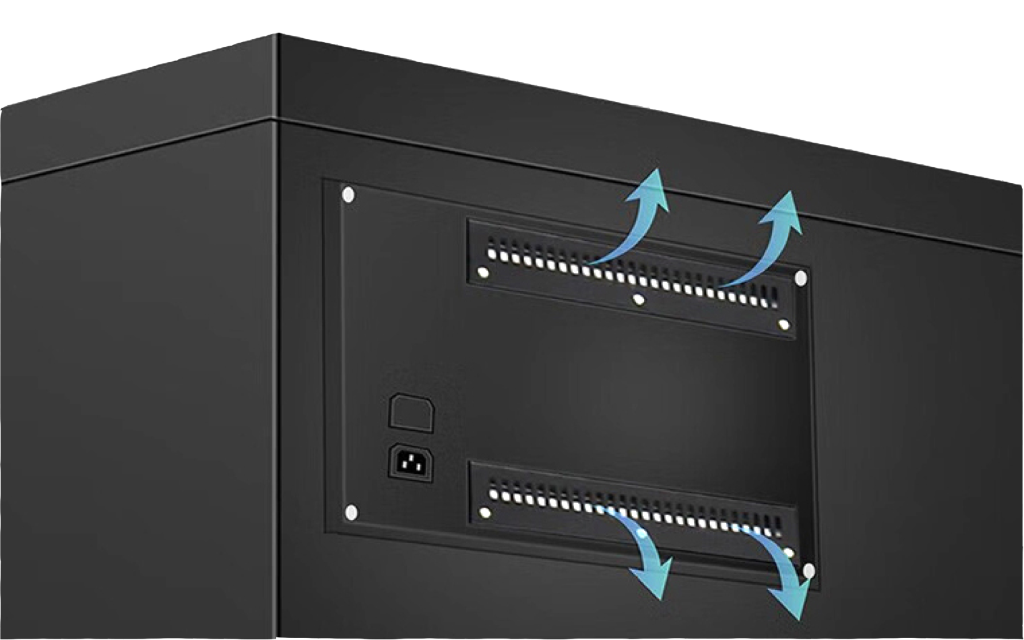

① Imported dehumidifier core, with internal circulation, rapid dehumidification; no frost formation or water dripping during operation, with a lifespan of over 10 years;
② Silent operation, low power consumption, highly energy-efficient, low-carbon and environmentally friendly;
③ Equipped with temporary power outage moisture absorption protection and physical moisture absorption backup function to continue dehumidification;
④ The dehumidification main unit uses high-temperature flame-retardant materials, with a high-temperature resistance reaching 300 degrees, eliminating potential safety hazards;
① Modular design, plug-and-play, making installation, maintenance and servicing more convenient;
② Control module with 12V safety voltage design to prevent electric shock risks;
③ Optional in-cabinet lighting: energy-saving and environmentally friendly cold and warm light bulbs, convenient for access without damaging the products;
High-quality materials, Durable and reliable
Precise manufacturing, Top quality

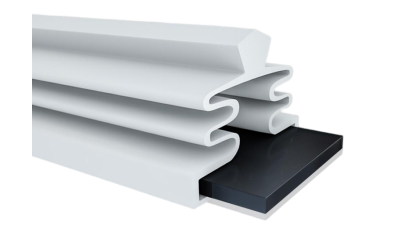

Built-in magnetic sealing strip, providing excellent sealing performance, resistant to aging, and not prone to moisture re-accumulation even when power is off.
① The conductive coefficient of the anti-static coating is 10^6 - 10^9 Ω, which complies with the industry ESD standards; ② High-precision digital processing, excellent sealing performance, and more efficient dehumidification; ③ Precise argon arc welding, smooth and flat surface, and good sealing of the box body;

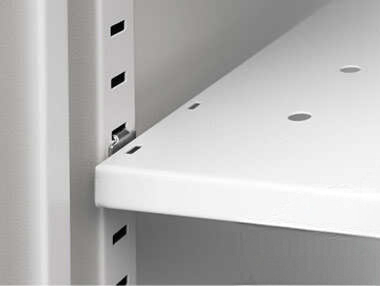

Adjustable shelves, Convenient storage
Explosion-proof glass, highly transparent and durable
① The thickness of the layer boards can be adjusted, providing flexible and variable storage space, suitable for storing irregular large items;
② The layer boards can be purchased separately, with strong scalability;
① 5mm explosion-proof tempered glass door, sturdy and durable; ② High transparency, allowing a clear view of the stored materials inside, reducing the impact of frequent door opening and closing on the materials;
Push type door-hatch, Safe and beautiful.
Universal casters, convenient and stable
① Press-type concealed door hatch, convenient, practical and more aesthetically pleasing;
② Key opening, safer for storage.
① High-quality double-bearing universal casters for easy mobility;
② Anti-static feature ensures greater safety, with brakes providing greater stability. Each caster can support up to 100kg, offering strong load-bearing capacity;
③ The large-capacity cabinet is designed with height-adjustable support legs, ensuring more stable load-bearing.

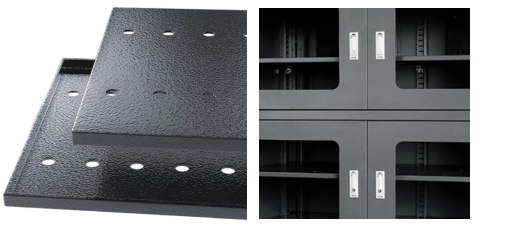

Quality materials and superior craftsmanship

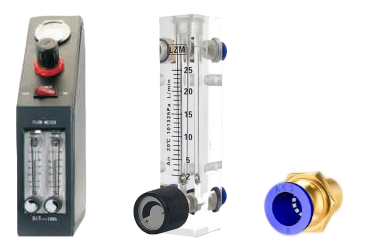

Dual flow meters, saving nitrogen

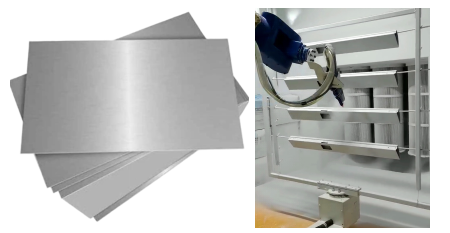

① Baosteel high-quality 1.2mm thick cold-rolled steel plate, with super strong load-bearing capacity;
② Full acid washing + electrostatic powder coating + high-temperature baking, durable paint surface, long-lasting use.
Transparent explosion-proof nitrogen dual-flow control system, with dual control of both large and small flow rates. Under the same working conditions, it can save at least 50% more nitrogen.
Product Parameters
| Volume | Model | Humidity (RH) | Power (W) | Outer size(mm) W*D*H | Inner size(mm) W*D*H | Door type | Shelf quantity (pc) | Storage chamber no. | Load bearing of shelf(kg) |
|---|---|---|---|---|---|---|---|---|---|
| 100L | YSN100 | 1%-60% | 10 | 450*400*700 | 405*370*630 | Single-door 1 layer | 1 | 2 | 20 |
| 160L | YSN160 | 1%-60% | 10 | 450*450*1010 | 405*420*840 | Single-door 1 layer | 3 | 4 | 20 |
| 240L | YSN240 | 1%-60% | 12 | 600*450*1250 | 555*420*1080 | Single-door 2 layer | 3 | 4 | 30 |
| 320L | YSN320 | 1%-60% | 15 | 900*450*1010 | 855*420*840 | Double-door 1 layer | 3 | 4 | 40 |
| 450L | YSN450 | 1%-60% | 18 | 900*600*1010 | 855*570*840 | Double-door 1 layer | 3 | 4 | 50 |
| 540L | YSN540 | 1%-60% | 23 | 600*690*1485 | 555*640*1315 | Single-door 2 layer | 3 | 4 | 50 |
| 730L | YSN730 | 1%-60% | 23 | 600*690*1830 | 555*640*1660 | Single-door 3 layer | 5 | 6 | 50 |
| 880L | YSN880 | 1%-60% | 33 | 900*600*1860 | 855*550*1680 | Double-door 2 layer | 5 | 6 | 60 |
| 1430L | YSN1430-4 | 1%-60% | 55 | 1200*690*1830 | 1155*640*1660 | Double-door 2 layer | 5 | 6 | 100 |
| 1430L | YSN1430-6 | 1%-60% | 55 | 1200*690*1830 | 1155*640*1660 | Double-door 3 layer | 5 | 6 | 100 |
* For anti-static option, add "F" after the model.
| Color | Standard model: White; Anti-static (F): Blue-gray |
|---|---|
| Anti-static coefficient | 106 ~ 109Ω |
| Humidity accuracy | ≤ ± 3%RH (Display range: 0% ~ 99%RH) |
| Temperature accuracy | ≤ ± 1°C (Display range: -9°C ~ 99°C, Just show but not control) |
| Power voltage | AC110V/220V, 50Hz/60Hz (self-adaptive) |
Function selection
| Function | Standard Model | Anti-static Model(F) |
|---|---|---|
| Door Latch | ||
| 5mm Explosion-proof tempered glass window door | ||
| Cold-rolled steel plate cabinet body | ||
| LCD | ||
| Temperature and Humidity Sensor | ||
| 1MΩ Grounding Wire | ||
| Anti-static | ||
| Interior lighting system | ||
| Over-humidity Alarm/ Over-temperature Alarm | ||
| MES | ||
| Intelligent Access Functions | ||
| RS232/485 Computer network monitoring | ||
| Password door lock (electronic/mechanical) | ||
| Stainless steel / acrylic box body |
Standard/Optional
* If you have any other customized requirements, please contact us.
