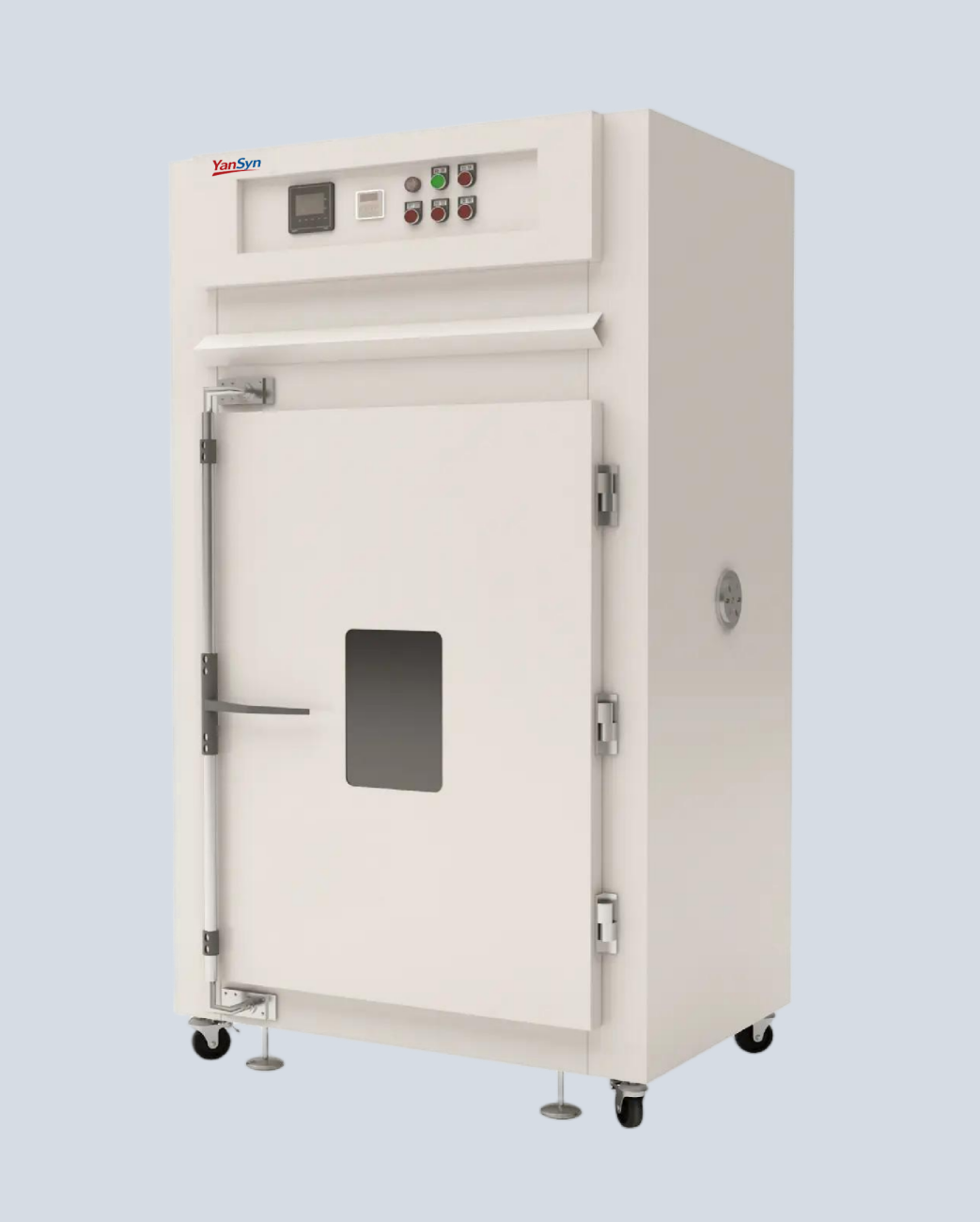

YSHG series electric heating blower oven

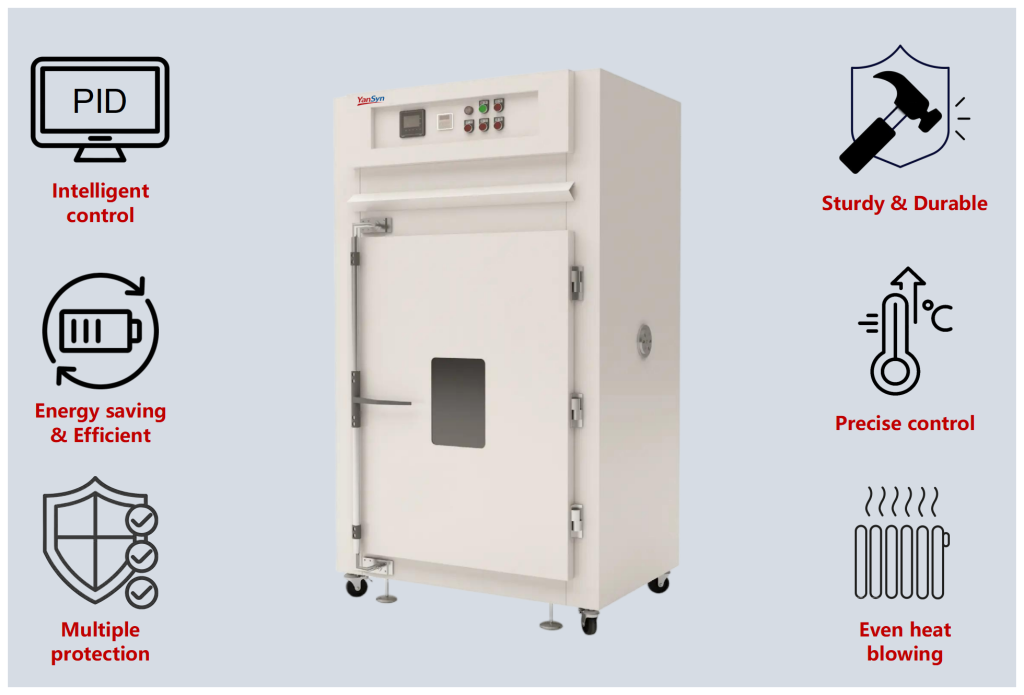

Intelligent Control
Touch-screen PLC system, multi-program control with ±1°C accuracy
Energy Saving & Efficient
Forced air circulation achieves excellent uniformity with less energy
Multiple Protection
Dual temperature control protection for safe unmanned operation
Sturdy & Durable
Q235 powder-coated steel shell, SUS304 stainless steel inner chamber
Precise Control
Stainless steel PT100 platinum resistance temperature sensing
Even Heat Blowing
High-pressure air circulation, temperature deviation within ±2°C
Product Overview
Intelligent PID Control & Uniform Airflow for Precision Heat Treatment
The YSHG series electric heating constant-temperature blower oven from YanSyn integrates precise temperature control and efficient, uniform heating. It adopts an intelligent PID control system to ensure precise and stable temperature. It is equipped with an efficient and uniform airflow forced ventilation system, achieving excellent temperature uniformity and significant energy-saving effects.
The equipment features dual temperature control protection functions to ensure safe operation in an unmanned environment. The entire machine has low noise, smooth operation, automatic temperature control, and convenient installation and maintenance. The mirror-finish stainless steel inner liner and sturdy, durable structure ensure long-term reliable use and make it an ideal heat treatment equipment for laboratories and industrial sectors.
This product has superior performance and is widely used in key industries such as semiconductors, new energy, biomedicine, military, and research institutions.
Hot air circulation oven detailed specification description:
Model: YSHG
Temperature range: RT~100℃, 150℃, 200℃, 300℃, 400℃, 500℃
External material: Made of #Q235 high-quality high-strength steel plate, powder-coated and baked.
Internal material: 1.2mm thick SUS304 high-quality stainless steel material.
Bottom structure: Double-layer structure: fixed feet, or swivel wheels with fixed support feet.
Insulation structure: High-density imported glass fiber insulation cotton, with good heat insulation and preservation effect.
Door structure:
1. Quantity: Single door, convenient for goods entry and exit. High-temperature silicone strip sealing.
2. Thickness: 100mm silicium-alumina cotton, with local reinforcement of installation hinges and handles.
3. Door latch: Simple and practical, beautiful, good sealing performance, long service life.
Detailed technical parameters:
Circulatory System:
The circulation adopts high-pressure level air circulation, with good uniformity, and the temperature deviation of the empty box does not exceed ±2℃.
Heating System:
1. It uses stainless steel U-shaped heaters, with a continuous service life of over 50,000 - 60,000 hours.
2. Heating-up time: From room temperature to 100℃, it takes approximately 20 minutes.
Temperature Control Device:
It uses a touch screen PLC control system, which can set multiple program controls, display curves, export data, and achieve automatic constant temperature control, with an accuracy of ±1℃.
Temperature Measurement Device:
Stainless steel PT100 platinum resistance temperature sensing device.
Overheating Protection:
Overheating protection instrument device, automatically cuts off the heating power when overheating occurs.
Operation Indicator Light:
Standby display is yellow, operation display is green, and abnormal end is red.
Alarm Device:
APT/AD16 type sound and light alarm, with an alarm prompt when the constant temperature time is over.
Current and Voltage:
AC 220V/AC 380V.
Protection Devices:
Motor overload protection, overheat protection, short circuit overcurrent, and fault indicator light.

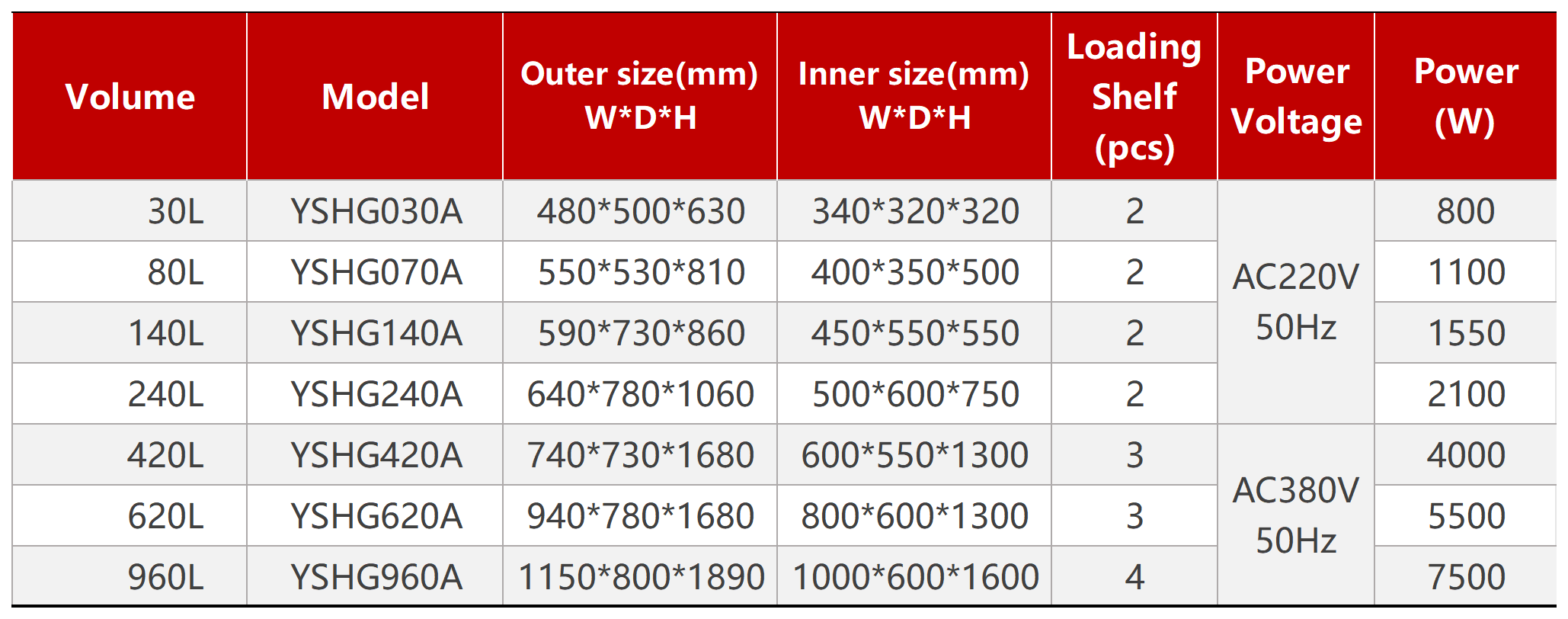

Product Parameters
| Volume | Model | Outer size(mm) W*D*H | Inner size(mm) W*D*H | Loading Shelf (pcs) | Power Voltage | Power (W) |
|---|---|---|---|---|---|---|
| 30L | YSHG030A | 480*500*630 | 340*320*320 | 2 | AC220V 50Hz | 800 |
| 80L | YSHG070A | 550*530*810 | 400*350*500 | 2 | 1100 | |
| 140L | YSHG140A | 590*730*860 | 450*550*550 | 2 | 1550 | |
| 240L | YSHG240A | 640*780*1060 | 500*600*750 | 2 | 2100 | |
| 420L | YSHG420A | 740*730*1680 | 600*550*1300 | 3 | AC380V 50Hz | 4000 |
| 620L | YSHG620A | 940*780*1680 | 800*600*1300 | 3 | 5500 | |
| 960L | YSHG960A | 1150*800*1890 | 1000*600*1600 | 4 | 7500 |

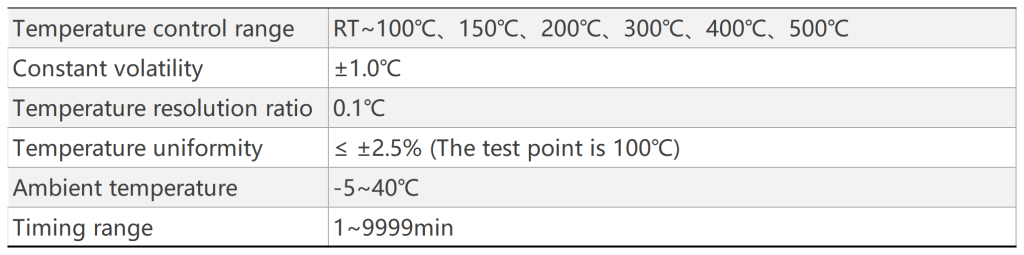

| Temperature control range | RT~100℃、150℃、200℃、300℃、400℃、500℃ |
|---|---|
| Constant volatility | ±1.0℃ |
| Temperature resolution ratio | 0.1℃ |
| Temperature uniformity | ≤ ±2.5% (The test point is 100℃) |
| Ambient temperature | -5~40℃ |
| Timing range | 1~9999min |

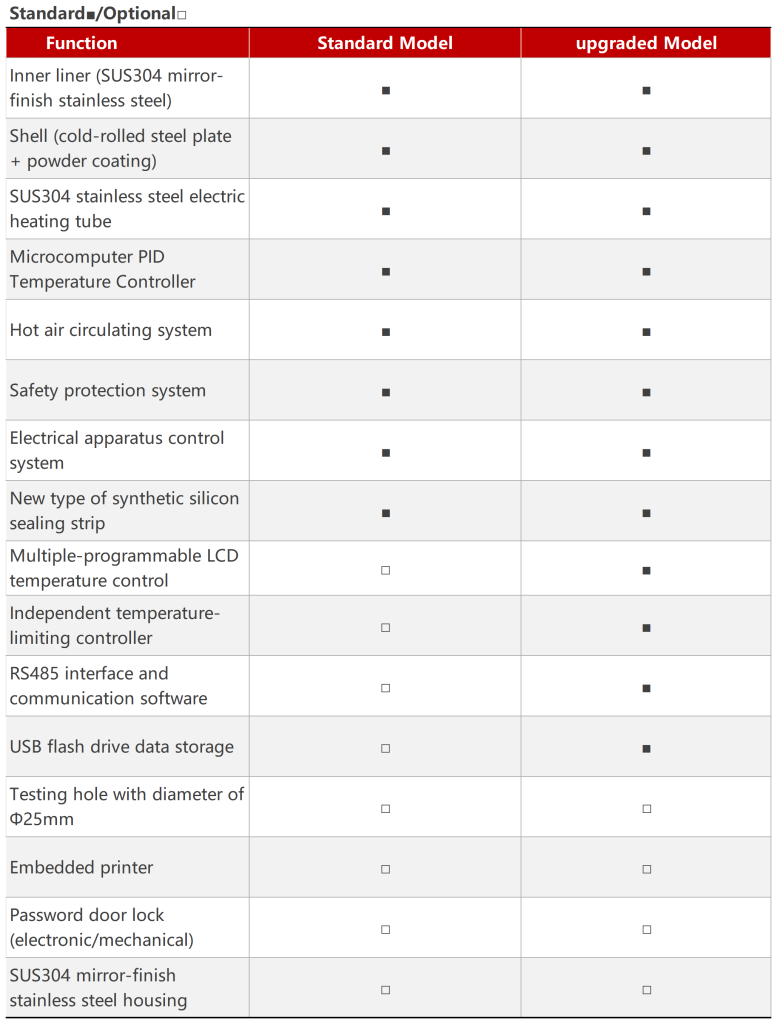

| Function | Standard Model | upgraded Model |
|---|---|---|
| Inner liner (SUS304 mirror-finish stainless steel) | ||
| Shell (cold-rolled steel plate + powder coating) | ||
| SUS304 stainless steel electric heating tube | ||
| Microcomputer PID Temperature Controller | ||
| Hot air circulating system | ||
| Safety protection system | ||
| Electrical apparatus control system | ||
| New type of synthetic silicon sealing strip | ||
| Multiple-programmable LCD temperature control | ||
| Independent temperature-limiting controller | ||
| RS485 interface and communication software | ||
| USB flash drive data storage | ||
| Testing hole with diameter of Φ25mm | ||
| Embedded printer | ||
| Password door lock (electronic/mechanical) | ||
| SUS304 mirror-finish stainless steel housing |
Standard Optional
* The upgraded electric heating constant-temperature blow-drying oven offers flexible options for its functions.
* We can also customize 100-level dust-free clean ovens, ±1℃ precision ovens, conveyor belt ovens, and other types of ovens. For more details, please feel free to contact our sales staff!
Related Posts

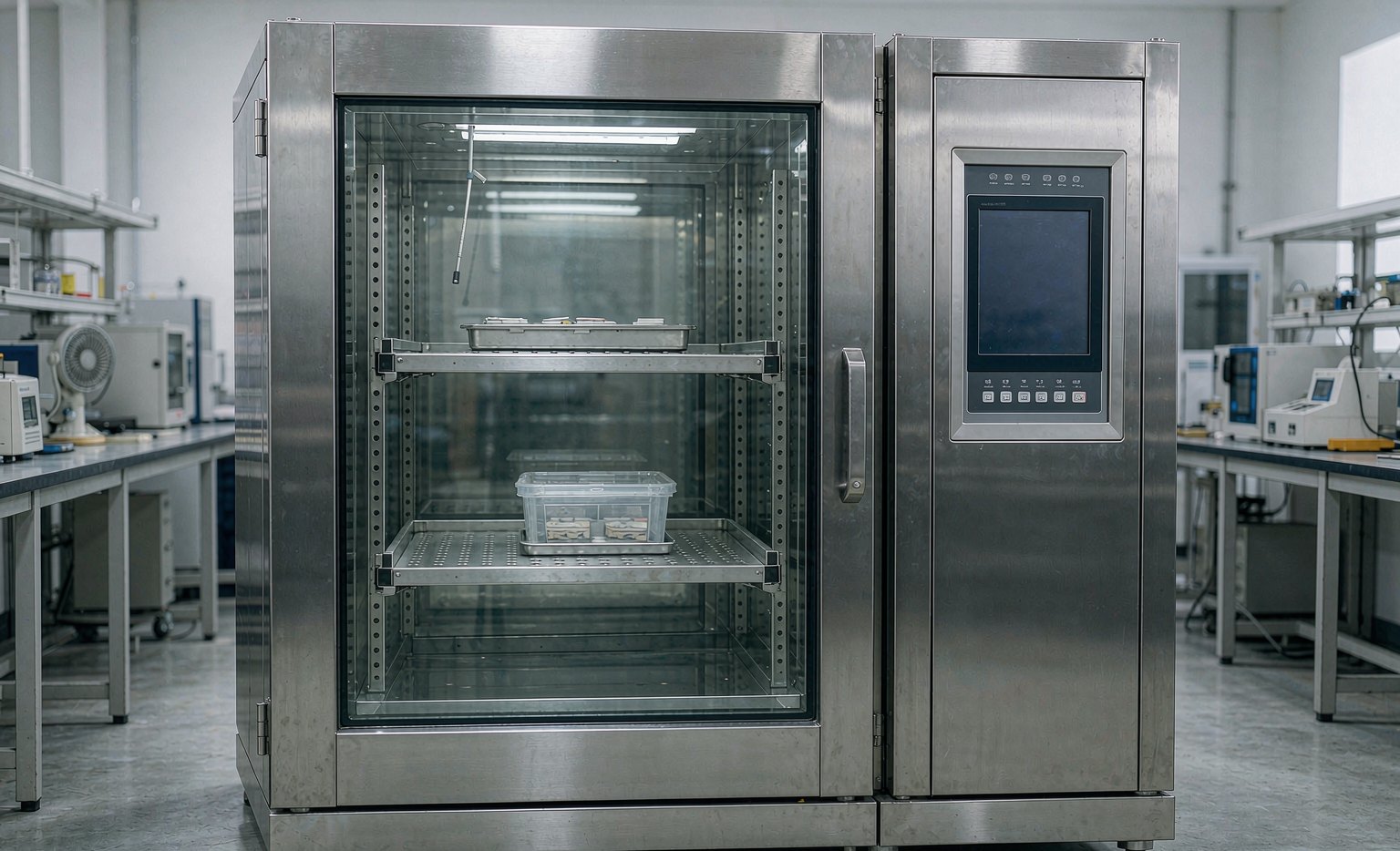

How to Specify a Constant Temperature & Humidity Chamber: Buyer's Guide
Specifying a heating oven means controlling one variable: temperature. Specifying a dry cabinet means controlling one variable: relative humidity. A constant temperature and humidity chamber looks like a simple combination of the two, but it…

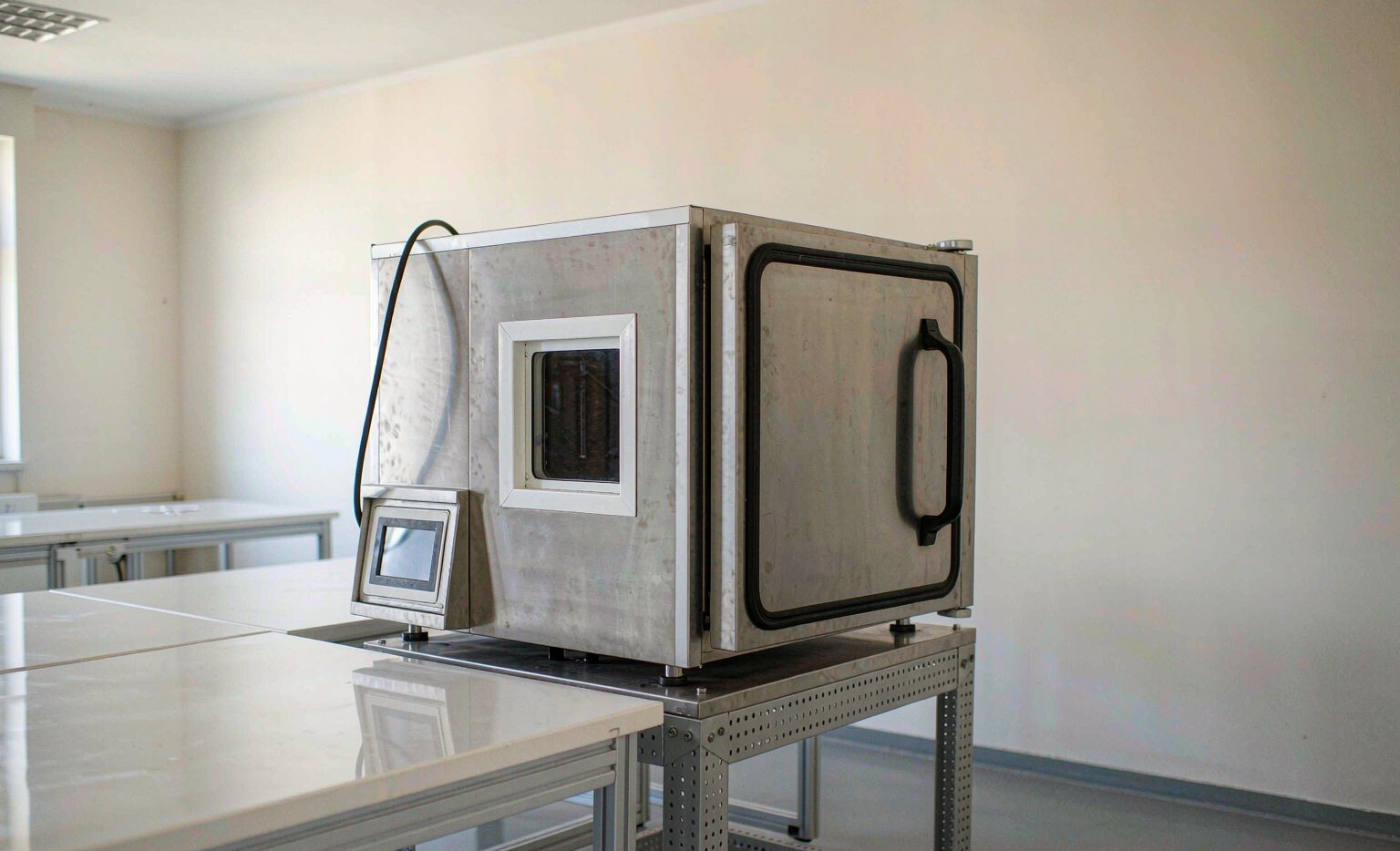

How to Specify a High-Low Temperature Test Chamber for Your Lab
